DirectLaser S4 — Inline PCBA Laser Depaneler
Track-inline UV/Green laser depaneling system with a compact frame and 3-step conveyor. Drops into SMT lines quickly and supports any PCBA outline with clean, stress-free edges.
Working area: 350 × 350 mm
Table/Platform: Granite single table, inline track (3-step transfer)
Accuracy: ±20 μm cutting, ±3 μm repeat
Typical materials: FR-4, FPC/PI, LCP; assembled PCBA depaneling
Table/Platform: Granite single table, inline track (3-step transfer)
Accuracy: ±20 μm cutting, ±3 μm repeat
Typical materials: FR-4, FPC/PI, LCP; assembled PCBA depaneling

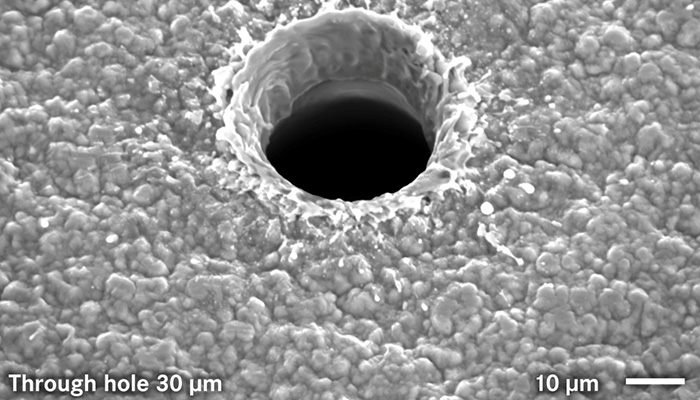

UV Laser System for Cutting and Drilling Flexible PCBs
S4 uses a 3-step inline feeding system and a fully enclosed cutting area. Interchangeable tooling enables fast product changeovers. The standardized interface and MES connectivity make digital integration straightforward.
What DirectLaser S4 DeliversInline throughput, simple operation, and reliable quality for daily SMT production.
Fast changeovers — interchangeable tools for quick switching between products.
3-step track feeding — simplified inline transfer for smooth, stable handling.
Intuitive operation — short learning curve for operators.
Standardized & safe — unified interfaces; enclosed working area for Class-1 level safety.
MES integration — barcode and data connectivity for traceable production.
Granite stability — rigid base supports repeatable precision in continuous runs.
Fast changeovers — interchangeable tools for quick switching between products.
3-step track feeding — simplified inline transfer for smooth, stable handling.
Intuitive operation — short learning curve for operators.
Standardized & safe — unified interfaces; enclosed working area for Class-1 level safety.
MES integration — barcode and data connectivity for traceable production.
Granite stability — rigid base supports repeatable precision in continuous runs.
DirectLaser S4 DataTable
| Model | DirectLaser-S4 |
| Valid cutting size | 350 x 350 mm |
| Cutting functions | Straight line; L-shape; U-shape; circle; arc |
| Process table | Single |
| Repeat precision | ±3μm |
| Cutting precision | ±20μm |
| Ambient temperature | 22℃±2℃(71.6℉±2℉) |
| Laser wavelength | 355 nm / 532 nm |
| Platform | Granite table |
| Automatic feeding | 3-step track transfer |
| Supported data formats | Gerber; HPGL; Sieb & Meier; Excellon; ODB++ |
| Operating system | Windows 7 / Windows 10 |
| Target reading | CCD automatic target capture; irregular target shapes; 'no target' requires DIL module |
| Cutting software | DreamCreaTor |
| Data processing software | CircuitCAM 7 |
| XYZ-axis drive | Linear + servo motors |
| Power | AC 380 V, 50/60 Hz, 2.5 kW, three-phase |
| Pneumatics | 0.6 MPa, 50 L/min |
| Dimensions (W x D x H) | 940 mm x 1,720 mm x 1,650 mm |
| Weight | 1,500 kg |
