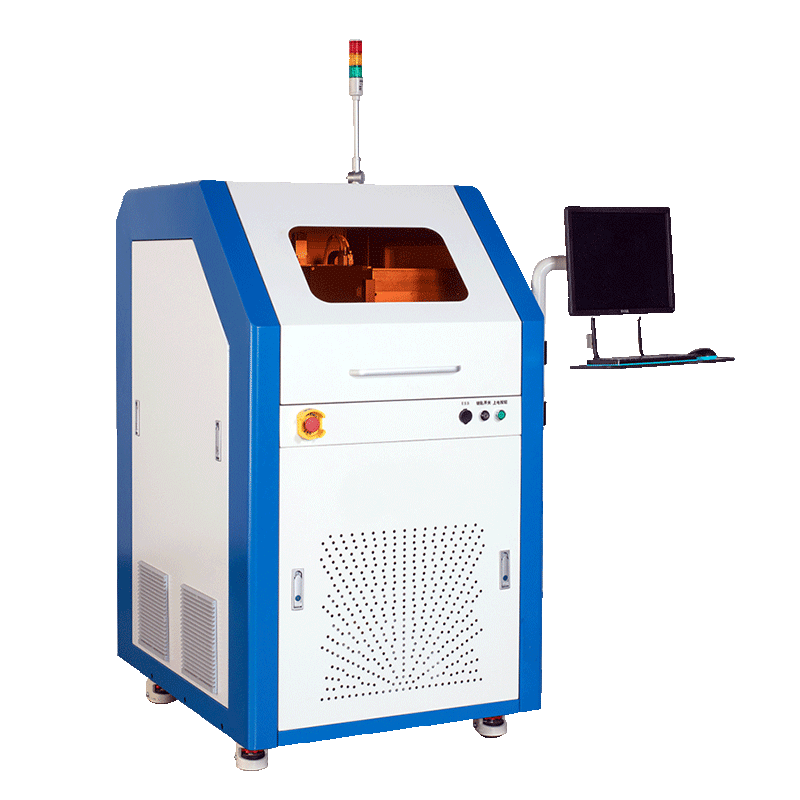

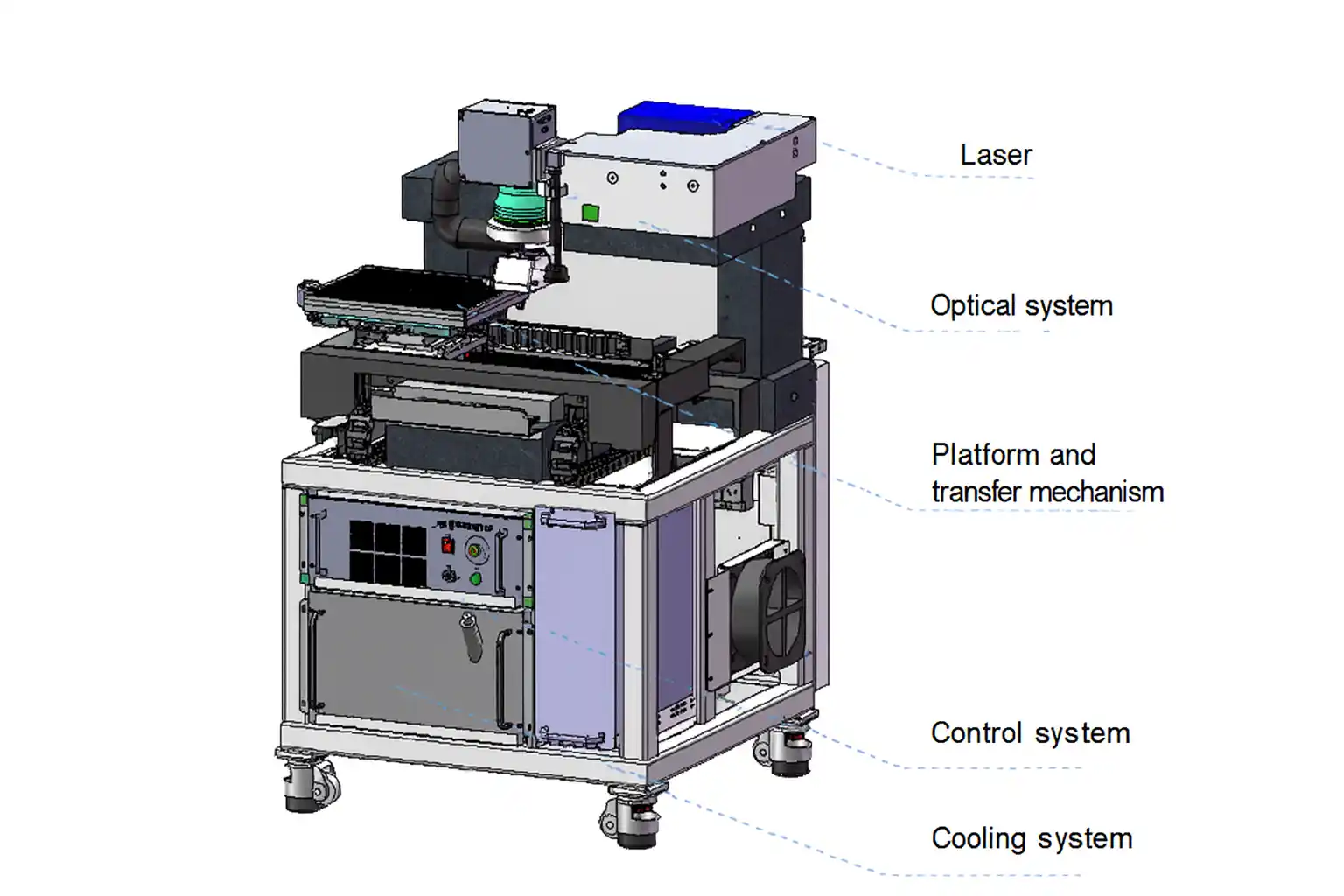

ZAM310S — PCB/FPC Laser Cutting Machine
An offline, single-platform UV/Green laser depaneling system for small/medium PCBs and FPCs. Built on a granite table for stability, with CCD vision and a practical contour library for everyday SMT separation.
Working area: 350 × 350 mm
Platform: Granite single table (offline)
Materials: FR-4, FPC/PI, LCP (and similar polymer stacks)
Platform: Granite single table (offline)
Materials: FR-4, FPC/PI, LCP (and similar polymer stacks)
Clean, stress-free depaneling for compact boards.
ZAM310S targets standard offline SMT PCB separation. It minimizes thermal impact, avoids mechanical stress near components, and keeps the work area clean with real-time fume extraction.
Features
High-precision cutting – Suitable for small formats and complex PCB/FPC outlines.
Minimal stress – Non-contact laser path protects components placed close to the cut.
Clean processing – Real-time exhaust removes gas and debris for consistent edges.
Offline SMT ready – Drops into existing flows without line changes.
Vision alignment – CCD automatic target capture; supports irregular targets. If no fiducials are available, DIL modules can be used.
Contour library & smoothing – Straight, L, U, circle, arc; path “tweening to straight line.”
High-precision cutting – Suitable for small formats and complex PCB/FPC outlines.
Minimal stress – Non-contact laser path protects components placed close to the cut.
Clean processing – Real-time exhaust removes gas and debris for consistent edges.
Offline SMT ready – Drops into existing flows without line changes.
Vision alignment – CCD automatic target capture; supports irregular targets. If no fiducials are available, DIL modules can be used.
Contour library & smoothing – Straight, L, U, circle, arc; path “tweening to straight line.”
Process Advantages With Laser Cutting Application Results
FPC Profile Cutting — Burr-free outlines, tight radii; narrow kerf improves panel utilization.

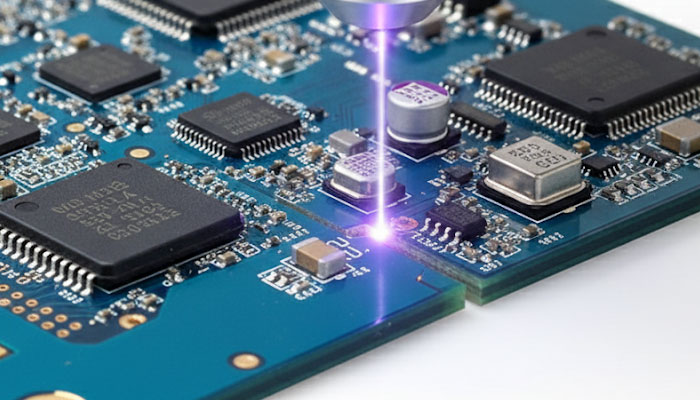

PCBA Depaneling — Clean separation close to components and copper; stress-free edges.
Coverlay Cutting — Accurate window openings and perimeter trims on FPC coverlay; no delamination.
Gold-Finger Trimming — Precise finishing around connector pads; plating quality protected.
FPC Profile Cutting — Burr-free outlines, tight radii; narrow kerf improves panel utilization.
PCBA Depaneling — Clean separation close to components and copper; stress-free edges.
Coverlay Cutting — Accurate window openings and perimeter trims on FPC coverlay; no delamination.
Gold-Finger Trimming — Precise finishing around connector pads; plating quality protected.
ZAM310S DataTable
| Parameter | ZAM310S |
| Laser Type | Green or UV; picosecond or nanosecond options |
| Laser Wavelength | 355 nm / 532 nm |
| System Accuracy | ±25 µm |
| Repeatability | ±2 µm |
| Processing Head | Galvo scanner, Scanlab |
| Vision Alignment | CCD, 1.6 MP (standard) |
| Max Processing Area | 350 × 350 mm |
| Platform Height | 900 ± 50 mm |
| Machine Platform | Granite base, linear motors |
| Safety | Safety light curtain; automatic doors |
| Data Preparation Software | CircuitCAM 7 Standard |
| Machine Control Software | DreamCreaTor 3 |
| Machine Dimensions (H×W×D) | 1624 mm × 917 mm × 1207 mm |
| Machine Weight | 700 kg |
| Power Supply | 380 VAC / 50 Hz, 4.5 kW |
ZAM310S Offline PCB/FPC Laser Depaneling Image Gallery
Applicable materials: PCBA, FPC, LCP, MPI, PI, FR-4/polyimide, HTCC/LTCC ceramics, and other encapsulation materials.

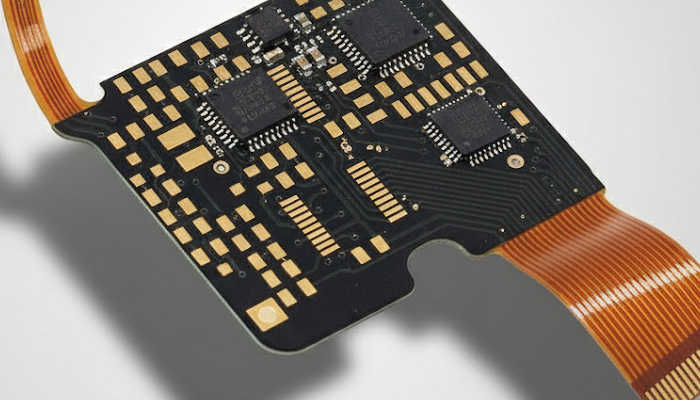

MPI-PCB

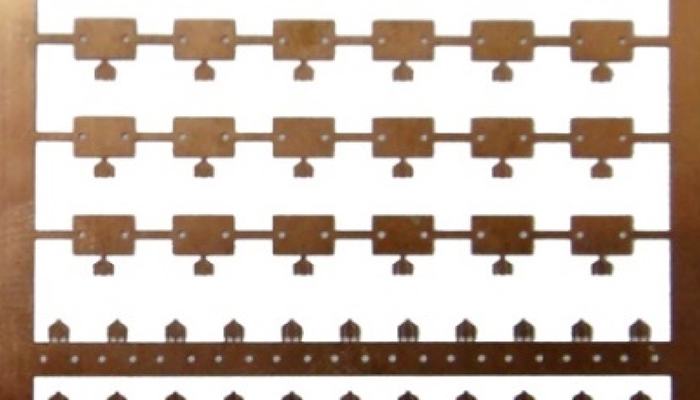

Copper-PCB
Flexible-circuit-boards-for-polyimide
FR4-PCB
Frequently Asked Questions
Quick technical answers about process, quality, and integration.
What is the max working area?
350 × 350 mm.
How accurate is it?
Cutting precision ±20 μm; repeat precision ±2 μm.
Is S2 inline or offline?
Offline single-platform (granite table).
Which materials are supported?
FR-4, FPC/PI, LCP within process limits.
Which wavelengths are available?
355 nm (UV) and 532 nm (Green).
What file formats are supported?
Gerber, HPGL, Sieb & Meier, Excellon, ODB++.
How does vision alignment work?
CCD automatic target capture; supports irregular targets. If no fiducials exist, use DIL modules.
What are the utilities?
AC380V 50/60 Hz 2.5 kW (three-phase); compressed air 0.6 MPa, 50 L/min.
Which OS and software?
Windows 7/10; DreamCreaTor (control) and CircuitCAM 7 (data).
Contact PCBSEP
Send your PCB panel data—get a fast recommendation or sample-cut plan. Email: [email protected]. We review your data, propose the cut recipe and cycle-time estimate, and (if requested) arrange a sample cut.
Related Products

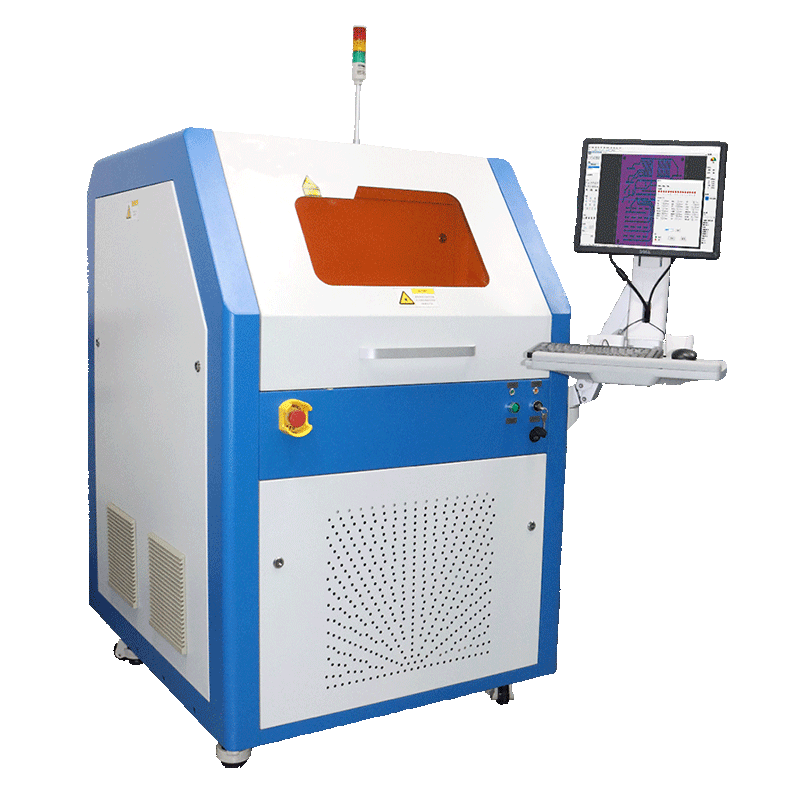

DirectLaser H1 — High-Precision, 300 × 350 mm
Micron-class repeatability for compact, high-accuracy work. Best when you need tight keep-outs and clean edges with minimal HAZ.

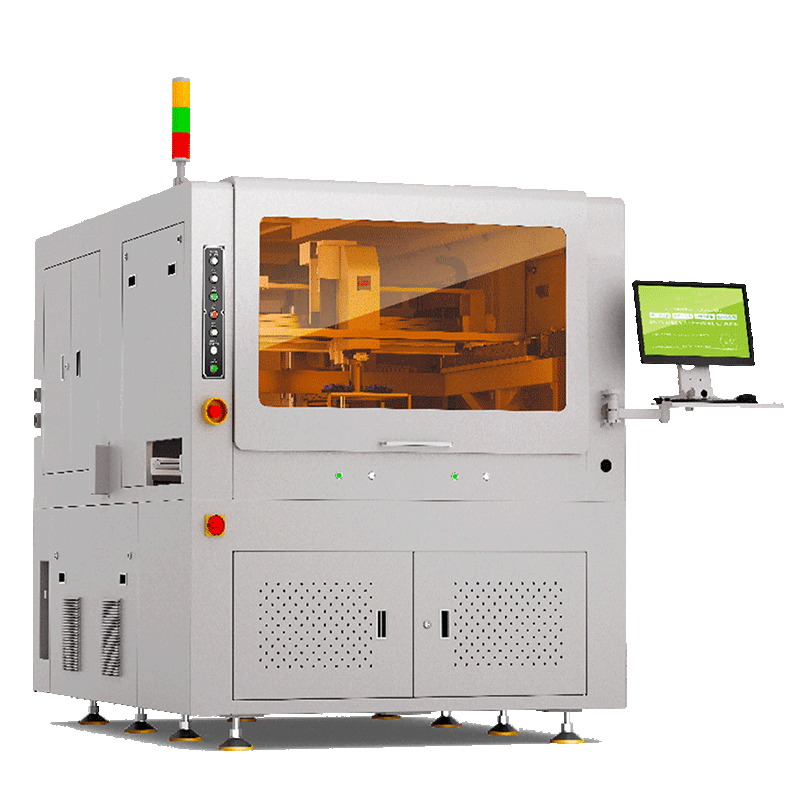

DirectLaser H3 — Dual-Platform, Offline
Two shuttle tables cut while you load the next panel—significant throughput gain vs. single-platform. Suited to standard SMT depaneling.

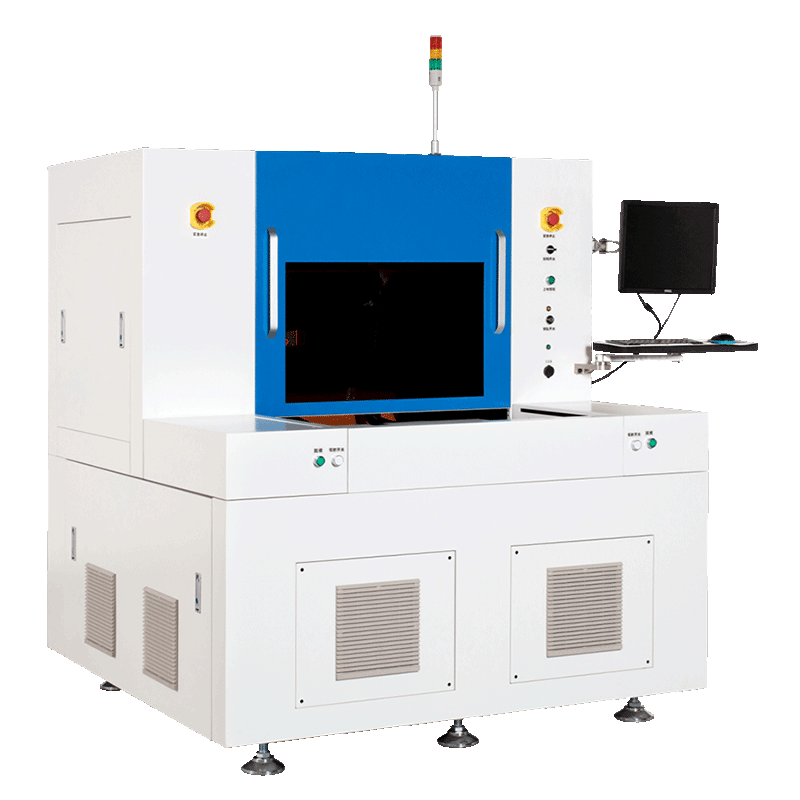

DirectLaser H3 330D — Dual-Platform, 350 × 520 mm
High-volume depaneling for large or multi-up panels. Faster cycle time from overlapping load/unload; optional inline upgrade pathway.

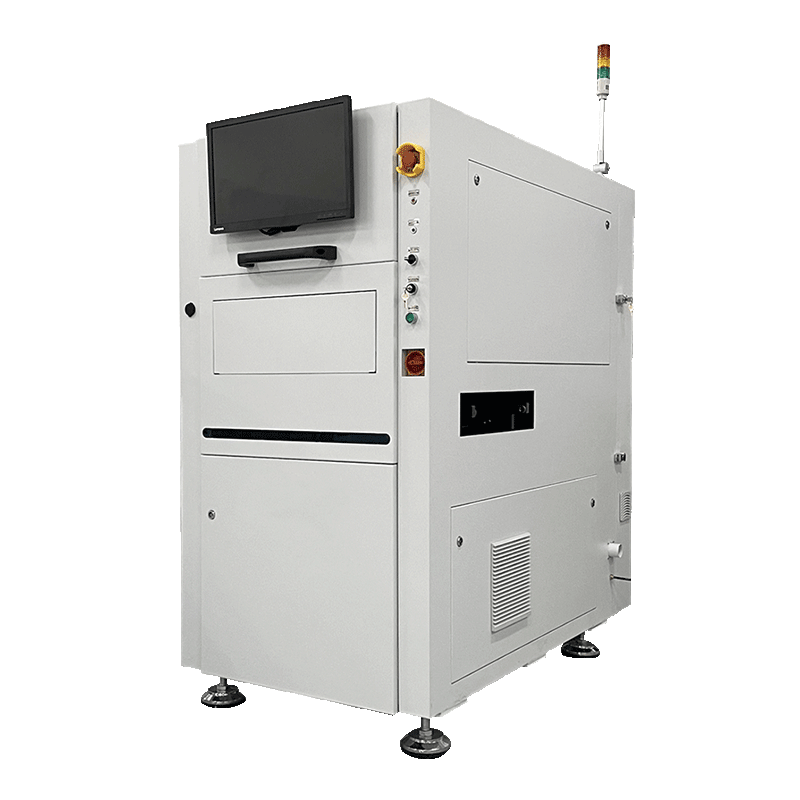

DirectLaser S4 — Inline PCBA Laser Depaneling
Drops straight into SMT lines; supports barcode/traceability and MES. Fits any PCBA outline; ideal when you want no manual load/unload.

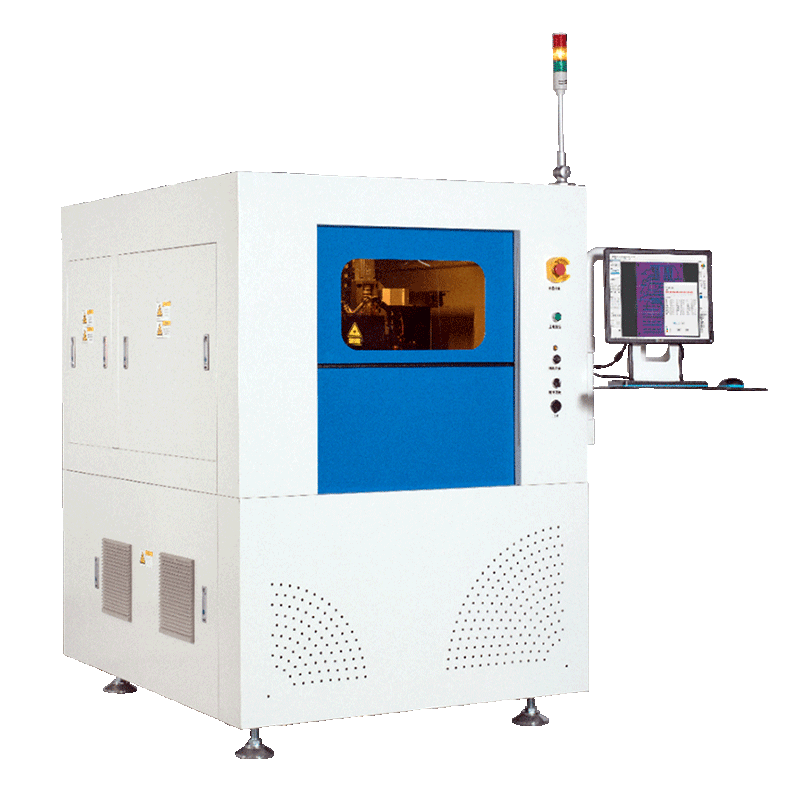

DirectLaser H5 — Large-Platform, Bridge-Gantry
