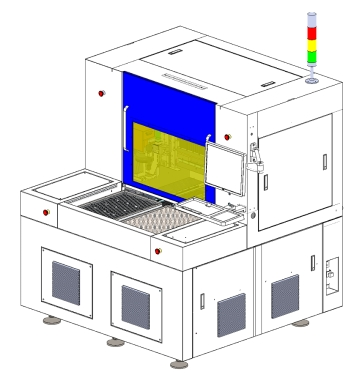

DirectLaser H3 330D — Dual-Platform Laser Depaneling Machine
Dual-platform laser depaneling system with a large 350 × 520 mm working area for high-throughput SMT jobs. Continuous processing reduces load/unload idle time and boosts takt.
Working area: 350 × 520 mm
Tables: Two (dual-platform) for continuous cutting
Accuracy: ±20 μm cutting, ±2 μm repeat
Platform: Marble/granite table
Wavelengths: 355 nm (UV) / 532 nm (Green)
Typical materials: FR-4, FPC/PI, LCP (and standard SMT stacks)
Tables: Two (dual-platform) for continuous cutting
Accuracy: ±20 μm cutting, ±2 μm repeat
Platform: Marble/granite table
Wavelengths: 355 nm (UV) / 532 nm (Green)
Typical materials: FR-4, FPC/PI, LCP (and standard SMT stacks)
Dual-table speed. Large area. Clean cuts.
Built for SMT depaneling, the H3 330D keeps the laser continuously in process while operators load the next panel. The large field handles multi-up or oversized panels with stable accuracy.
Features
Dual-table continuous processing — reduces load/unload time; laser stays in cutting state.
Large processing area 350 × 520 mm — fits wide PCB formats and multi-up panels.
SMT-ready workflows — ideal for depaneling pre-placed PCBs and coverlay window opening.
Camera target pre-positioning (optional) — camera-based alignment cuts positioning time.
Direct data-driven — import data and start; fast product introduction.
High automation — optional mechanical transfer arm (with scrap-board throw).
Options — UV 15/20/25 W or Green 35/60 W, laser height sensor, barcode reader & MES integration, laser power monitoring (camera-based), upgrade to inline.
Dual-table continuous processing — reduces load/unload time; laser stays in cutting state.
Large processing area 350 × 520 mm — fits wide PCB formats and multi-up panels.
SMT-ready workflows — ideal for depaneling pre-placed PCBs and coverlay window opening.
Camera target pre-positioning (optional) — camera-based alignment cuts positioning time.
Direct data-driven — import data and start; fast product introduction.
High automation — optional mechanical transfer arm (with scrap-board throw).
Options — UV 15/20/25 W or Green 35/60 W, laser height sensor, barcode reader & MES integration, laser power monitoring (camera-based), upgrade to inline.
DirectLaser H3 330D DataTable
| Model | DirectLaser H3 330D |
| Vaild cutting size | 350mm×520mm |
| Cutting function | Tweening to staight line,L shape,U shape,Circle,Arc |
| Process table | Two |
| Repeat precision | ±2μm |
| Cutting precision | ±20μm |
| Ambient Temperatur | 22℃±2℃(71.6℉±2℉) |
| Platform | Marble table |
| Transfer model（option） | Mechanical transfer arm（scrap board throwing） |
| Laser wavelength | 355nm/532nm |
| Receive Data Forma | Gerber, HPGL, Sieb & Meier, Excellon, ODB++ |
| Operation system | Windows 7 / Windows 10 |
| Target reads | CCD automatic target capture Target shape is irregular, no Target, DIL is required Modules |
| Cutting software | DreamCreaTor |
| Data processing software | CircuitCAM 7 |
| XYZ-axis driving mode | linear +servo motor |
| Voltage/Power requirement | AC380V 50/60Hz 2.5KW three phase |
| Pneumatic pressure requirement | 0.6MPa，50L/min |
| Dimensions(W*D*H) | 1600mm x2100mm x1600mm |
| Weight | 2000KG |
