Flexible PCB Depaneling & Cutting
Clean, stress-free laser depaneling for FPC and rigid-flex stacks (PI/LCP, adhesive/adhesive-less coverlay, copper foils, stiffeners). Narrow kerf and ±20–25 µm cutting accuracy—ideal for tight outlines near copper and components.
What Are Flexible Circuit Boards?

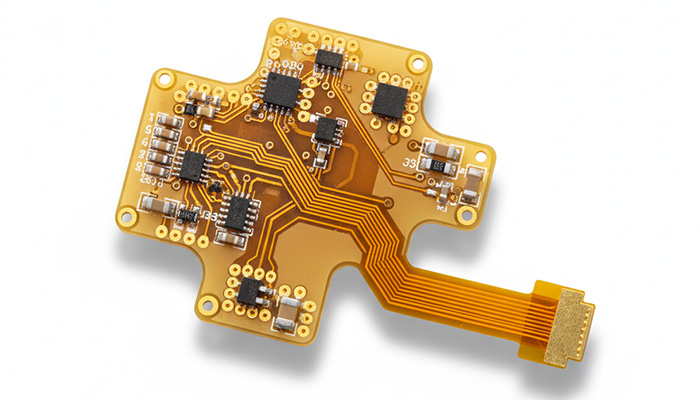

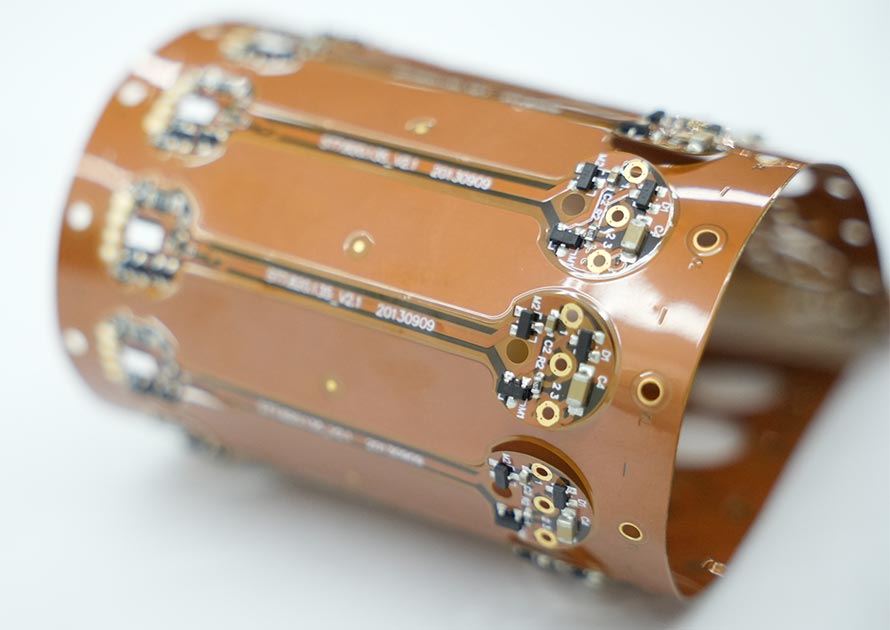

Flexible circuit boards are film-based laminates (typically polyimide) with patterned copper layers. They can be used alone or combined with rigid materials (e.g., FR-4) as rigid-flex.
Process windows vary by stack-up, so we tune recipes for coverlay, copper thickness, and adhesive systems.
Process windows vary by stack-up, so we tune recipes for coverlay, copper thickness, and adhesive systems.
Applications of Flexible Circuit Boards
FPCs appear across most electronics sectors thanks to bendability, twistability, and foldability.
Automotive: sensor harnesses, lighting interconnects, camera modules
Consumer: phones, wearables, tablets, camera flexes
Medical: disposables, diagnostics, compact sensor modules
Industrial: compact control boards, hinge/fold interconnects
Automotive: sensor harnesses, lighting interconnects, camera modules
Consumer: phones, wearables, tablets, camera flexes
Medical: disposables, diagnostics, compact sensor modules
Industrial: compact control boards, hinge/fold interconnects
Flexible PCB Laser Cutting — Our Process Benefits
Why laser is the strongest method for FPC depaneling and ablation?
No mechanical stress or vibration — safe near delicate parts
Narrow kerf (tens of µm) — better panel utilization

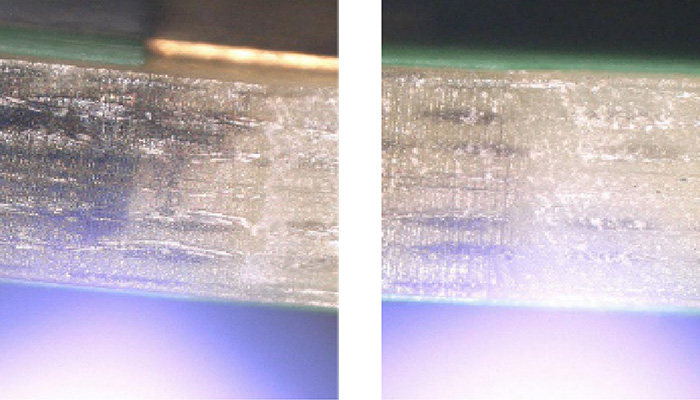

Low HAZ — tuned energy, multi-pass strategies, effective extraction
Free-form contours — profiles, slots, windows, micro-features
Coverlay ablation — precise window opening without delamination
No mechanical stress or vibration — safe near delicate parts
Narrow kerf (tens of µm) — better panel utilization
Low HAZ — tuned energy, multi-pass strategies, effective extraction
Free-form contours — profiles, slots, windows, micro-features
Coverlay ablation — precise window opening without delamination
Related Products
DirectLaser H1 — High-Precision, 300 × 350 mm
Micron-class repeatability for compact, high-accuracy work. Best when you need tight keep-outs and clean edges with minimal HAZ.
DirectLaser S2 — Offline, Single-Platform
Entry-level UV depaneler for low/medium takt SMT. Compact footprint, stable steel frame, cost-effective for standard FR-4/FPC jobs.
DirectLaser H3 — Dual-Platform, Offline
Two shuttle tables cut while you load the next panel—significant throughput gain vs. single-platform. Suited to standard SMT depaneling.
DirectLaser H3 330D — Dual-Platform, 350 × 520 mm
High-volume depaneling for large or multi-up panels. Faster cycle time from overlapping load/unload; optional inline upgrade pathway.
DirectLaser S4 — Inline PCBA Laser Depaneling
Drops straight into SMT lines; supports barcode/traceability and MES. Fits any PCBA outline; ideal when you want no manual load/unload.
DirectLaser H5 — Large-Platform, Bridge-Gantry
High-stability X/Y split-axis for thick copper, rigid-flex, and complex outlines. Ships offline; can be upgraded to inline (three-section conveyor).
Contact / Request a Sample
Send your FPC stack-up and panel data for a fast recipe or sample-cut plan.
Include: material (PI/LCP) & thickness, coverlay type, copper stack-up, stiffener material, board/panel size & array, copper keep-out, edge/HAZ limits, target takt/UPH, inline/offline + MES needs, and CAD (Gerber/ODB++/DXF/Excellon).
Include: material (PI/LCP) & thickness, coverlay type, copper stack-up, stiffener material, board/panel size & array, copper keep-out, edge/HAZ limits, target takt/UPH, inline/offline + MES needs, and CAD (Gerber/ODB++/DXF/Excellon).
Sample Cutting & Process Report
Send your CAD and panel details; we provide cut samples, photos, optional edge micrographs, recommended laser parameters, and a cycle-time/yield estimate so you can decide fast.
Remote Video Support
Live, encrypted video sessions for setup, recipe tuning, vision alignment, and basic maintenance. Quick scheduling, clear checklists, and follow-up notes to keep your line running.
On-Site Commissioning & Training
Certified engineers handle installation, calibration, and operator training—handing over SOPs and acceptance results to your quality standard. Available across our service regions.
